| Series Name |
T |
| Nominal Cooling Capacity (tonnage) |
1 |
| Star Rating |
3 star |
| (Rated) Voltage/Frequency/Phase |
230 V / 50Hz / Single |
| Cooling Capacity (Watt)(Min~Max) |
3550(1080?3783) |
| Cooling Capacity (BTU/hr) |
12105 |
| Rated Cooling Capacity (50% Load) (Watt) |
1775 |
| Cooling Rated Power Input (Watt) |
1145 |
| Cooling Capacity (BTU/hr)(Min~Max) |
12105(3685?12908) |
| Cooling Power Input (50% Load) (Watt) |
425 |
| ISEER |
3.9 |
| Electricity Consumed In 1600 Hours. (Units/Year) |
703.9 |
| Nominal Current (Cooling)(Amps) |
5.15 |
| Air Flow Volume (Wet CFM) (High / Medium / Low) |
323/255/185/141 |
| Noise Level Indoor (dB(a)) (High/ Medium/ Low) |
44.2/39.7/37.3 /33.6 |
| Moisture Removal (Litres/Hour) |
1.34 |
| Compressor Type |
Inverter Rotary |
| Acoustic Jacket On Compressor |
Yes |
| Refrigerant Quantity(Kg) |
0.43 |
| Ambient Temp (Cooling) (degree C) |
52 |
| Remote |
LCD Remote with Display |
| Night Glow Function On Remote Buttons |
Yes |
| Net IDU(Product) Dimension (mm) |
798 x 300 x 203 |
| Input Power Supply |
IDU |
| Net Weight IDU (kg) |
8.3 |

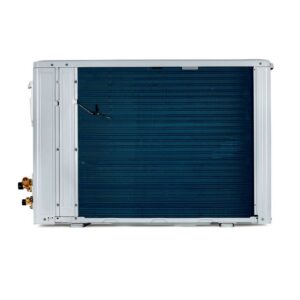

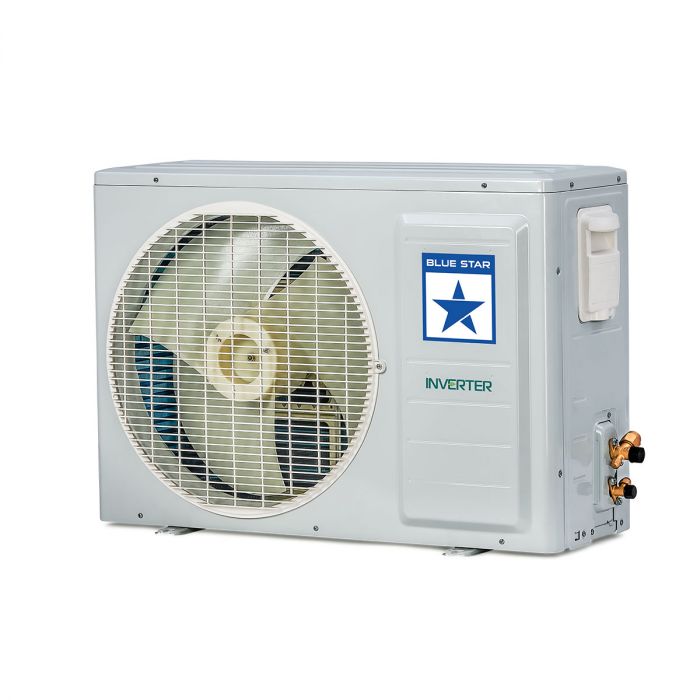

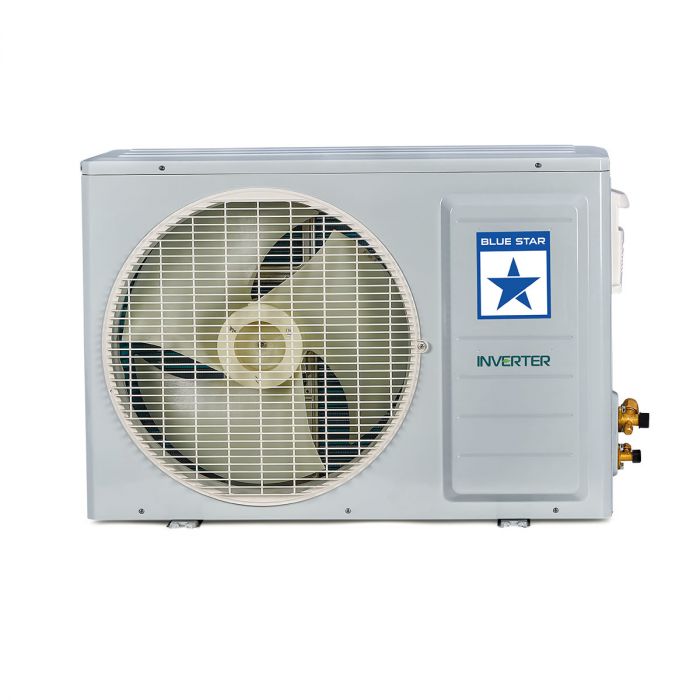

| Net ODU Dimensions (Width X Depth X Height) (mm) |
740 x 442 x 250 |
| Net Weight ODU (kg) |
19.5 |
| Noise Level Outdoor (dB(a)) |
55 |
| Gross IDU Weight (kg) |
10.2 |
| Gross ODU Weight (kg) |
22 |
| Suction Tube Size Outer Diameter Inch (mm) |
3/8″ (9.525mm) |
| Liquid Tube Size Outer Diameter Inch (mm) |
1/4″ (6.35mm) |
| Max Piping Capability Total (metre) |
15 |
| Max Piping Capability Vertical (metre) |
10 |
| Refrigerant Additional Charge Beyond 4M (g/m) |
15 |
| Power Supply to ODU Source(Core/Gauge) |
4C * 1.0sqmm |
| Power Supply to IDU Source(Core/Gauge) |
3C * 1.0sqmm |
| Remote Battery Type |
AAA |
| Product Title |

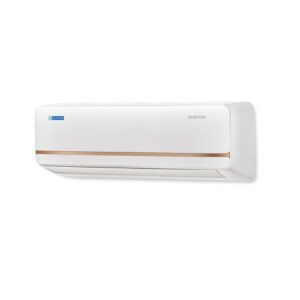

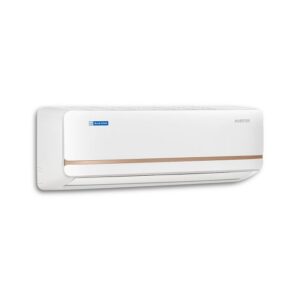

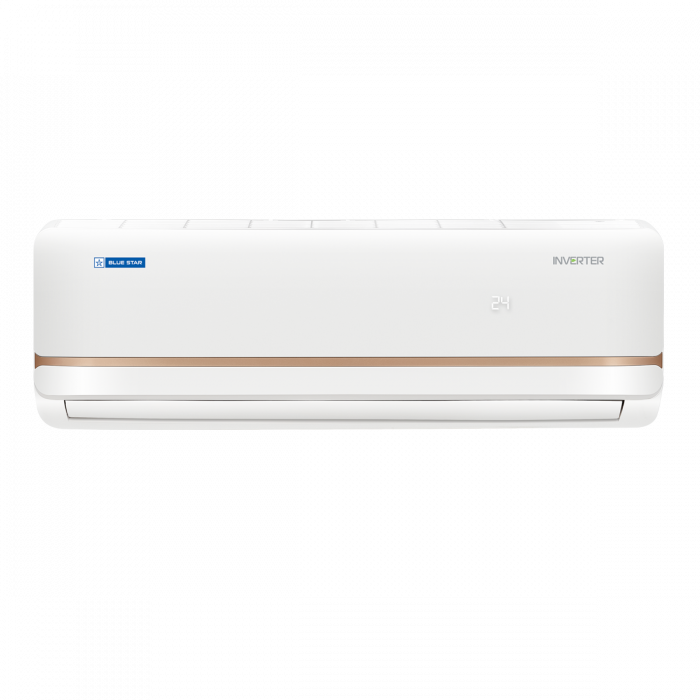

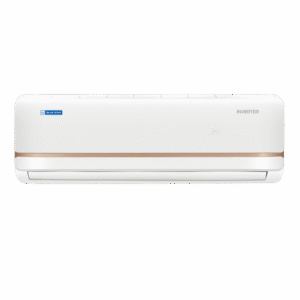

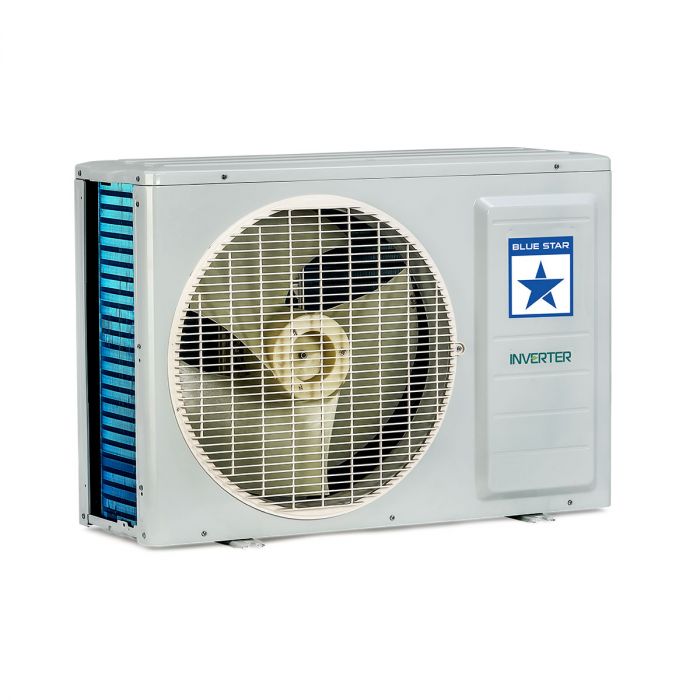

IB312TNU-Inverter Split AC 1.0 Tr 3 Star |
| Features Refrigerant |
R32 |
| Features Condenser Type |
100% Copper |
| Air Conditioner Technology |
Inverter |
| Country of Origin |
India |
