| Series Name |
T |
| Nominal Cooling Capacity (tonnage) |
1.5 |
| Star Rating |
3 star |
| (Rated) Voltage/Frequency/Phase |
230 V / 50Hz / Single |
| Cooling Capacity (Watt)(Min~Max) |
5100 ( 1770 ? 5321 ) |
| Cooling Capacity (BTU/hr) |
17401 |
| Rated Cooling Capacity (50% Load) (Watt) |
2550 |
| Cooling Rated Power Input (Watt) |
1700 |
| Cooling Capacity (BTU/hr)(Min~Max) |
17401 ( 6039 ? 18155 ) |
| Cooling Power Input (50% Load) (Watt) |
610 |
| ISEER |
3.85 |
| Electricity Consumed In 1600 Hours. (Units/Year) |
1026.11 |
| Nominal Current (Cooling)(Amps) |
7.28 |
| Air Flow Volume (Wet CFM) (High / Medium / Low) |
516/484/352/297 |
| Noise Level Indoor (dB(a)) (High/ Medium/ Low) |
44.9 /43.7/ 36.8/ 33.7 |
| Moisture Removal (Litres/Hour) |
1.8 |
| Compressor Type |
Inverter Rotary |
| Acoustic Jacket On Compressor |
Yes |
| Refrigerant Quantity(Kg) |
0.62 |
| Ambient Temp (Cooling) (degree C) |
52 |
| Remote |
LCD Remote with Display |
| Night Glow Function On Remote Buttons |
Yes |
| Net IDU(Product) Dimension (mm) |
950 x 317 x 223 |
| Input Power Supply |
IDU |
| Net Weight IDU (kg) |
10.8 |
| Net ODU Dimensions (Width X Depth X Height) (mm) |
780 x 526 x 250 |
| Net Weight ODU (kg) |
20.6 |
| Noise Level Outdoor (dB(a)) |
54 |
| Gross IDU Weight (kg) |
12.7 |
| Gross ODU Weight (kg) |
23.5 |
| Suction Tube Size Outer Diameter Inch (mm) |
1/2″ (12.7mm) |
| Liquid Tube Size Outer Diameter Inch (mm) |
1/4″ (6.35mm) |
| Max Piping Capability Total (metre) |
15 |
| Max Piping Capability Vertical (metre) |
10 |
| Refrigerant Additional Charge Beyond 4M (g/m) |
15 |
| Power Supply to ODU Source(Core/Gauge) |
4C * 1.5sqmm |
| Power Supply to IDU Source(Core/Gauge) |
3C * 1.5sqmm |
| Remote Battery Type |
AAA |
| Product Title |

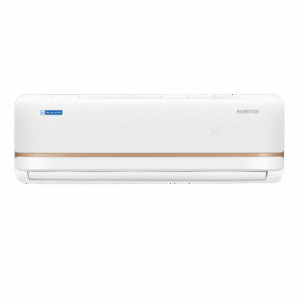

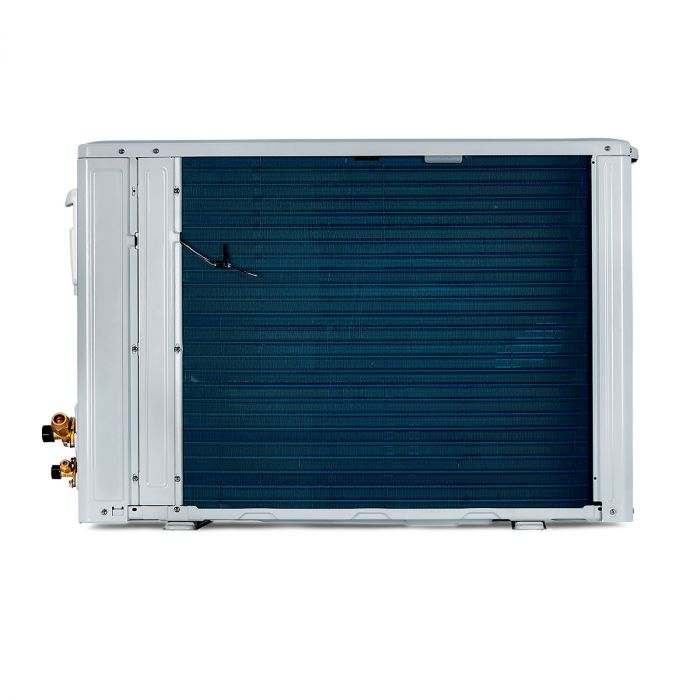

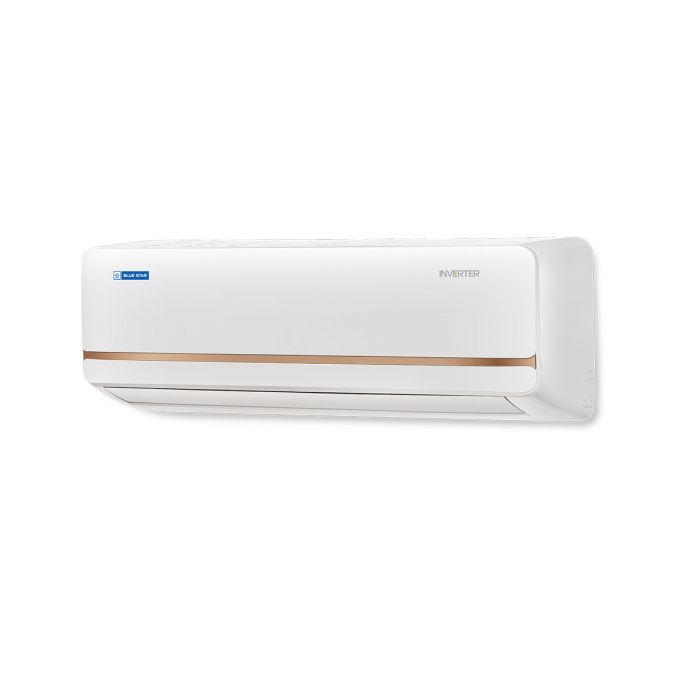

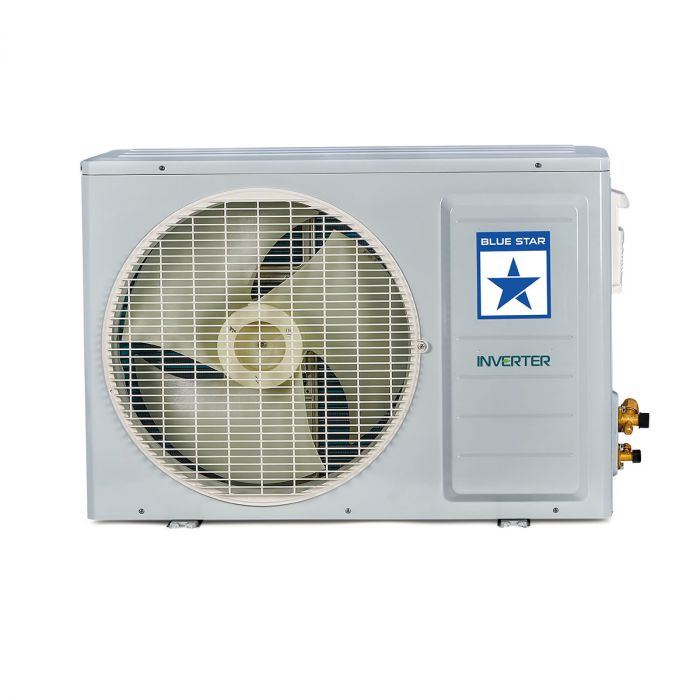

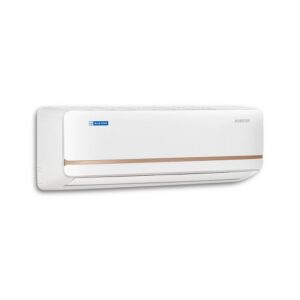

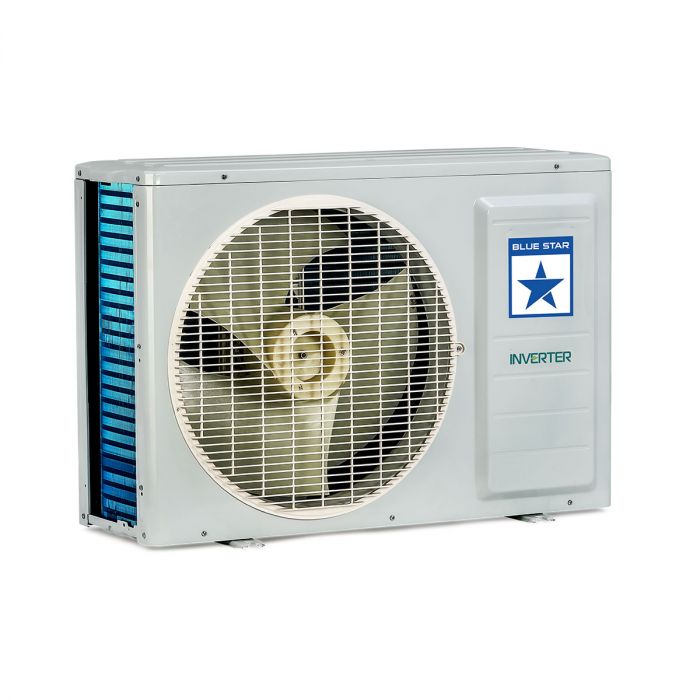

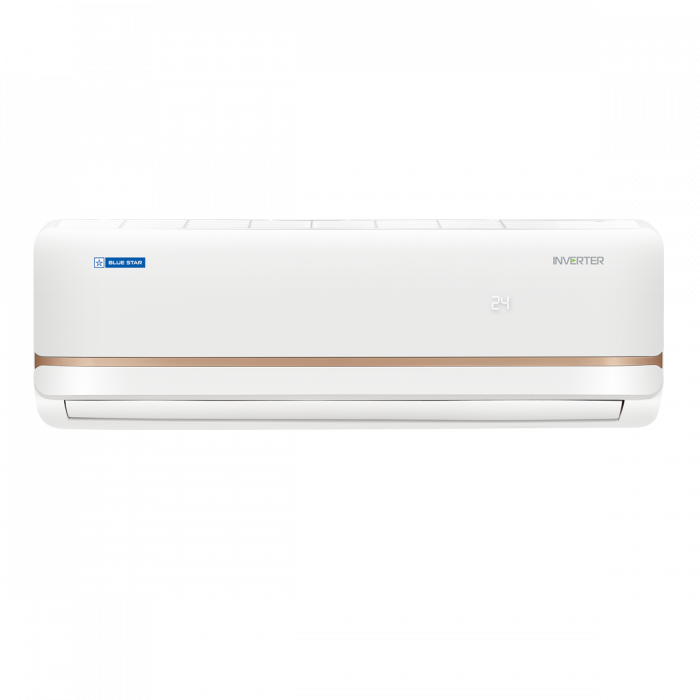

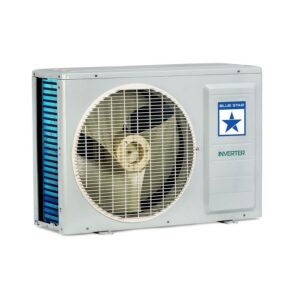

IB318TNU-Inverter Split AC 1.5 Tr 3 Star |
| Features Refrigerant |
R32 |
| Features Condenser Type |
100% Copper |
| Air Conditioner Technology |
Inverter |
| Country of Origin |
India |
