General
| Series Name | D |
| Nominal Cooling Capacity (tonnage) | 1 |
| Star Rating | 5 star |
| (Rated) Voltage/Frequency/Phase | 230 V / 50Hz / Single |
| Cooling Capacity (Watt)(Min~Max) | 3375(1401 ~ 3625) |
| Cooling Capacity (BTU/hr) | 11515 |
| Rated Cooling Capacity (50% Load) (Watt) | 1688 |
| Cooling Rated Power Input (Watt) | 804 |
| Cooling Capacity (BTU/hr)(Min~Max) | 11515 (4780 ~12369) |
| Cooling Power Input (50% Load) (Watt) | 325 |
| ISEER | 5.05 |
| Electricity Consumed In 1600 Hours. (Units/Year) | 517.83 |
| Nominal Current (Cooling)(Amps) | 3.8 |
| Air Flow Volume (Wet CFM) (High / Medium / Low) | 375/308/202/174 |
| Noise Level Indoor (dB(a)) (High/ Medium/ Low) | 54.5/43.1/31/27 |
| Moisture Removal (Litres/Hour) | 0.72 |
| Compressor Type | Inverter Rotary |
| Acoustic Jacket On Compressor | Yes |
| Refrigerant Quantity(Kg) | 0.55 |
| Ambient Temp (Cooling) (degree C) | 54 |
| Remote | LCD Remote with Display |
| Night Glow Function On Remote Buttons | Yes |
| Net IDU(Product) Dimension (mm) | 845 x 193 x 300 |
| Input Power Supply | IDU |
| Net Weight IDU (kg) | 10 |
| Net ODU Dimensions (Width X Depth X Height) (mm) | 858 x 536 x 327 |
| Net Weight ODU (kg) | 26.3 |
| Noise Level Outdoor (dB(a)) | 62 |
| Gross IDU Weight (kg) | 11.1 |
| Gross ODU Weight (kg) | 30.3 |
| Suction Tube Size Outer Diameter Inch (mm) | ?9.52 (3/8”) |
| Liquid Tube Size Outer Diameter Inch (mm) | ?6.35 (1/4”) |
| Max Piping Capability Total (metre) | 15 |
| Max Piping Capability Vertical (metre) | 10 |
| Refrigerant Additional Charge Beyond 4M (g/m) | 15 |
| Power Supply to ODU Source(Core/Gauge) | 4C * 1.0sqmm |
| Power Supply to IDU Source(Core/Gauge) | 3C * 1.0sqmm |
| Remote Battery Type | AAA |

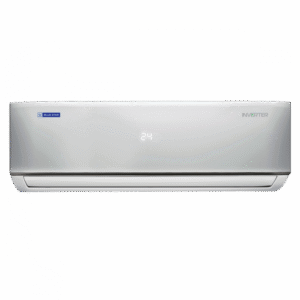

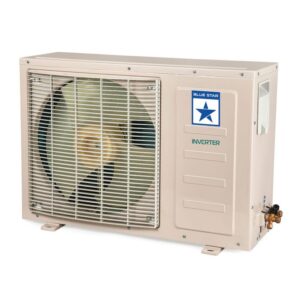

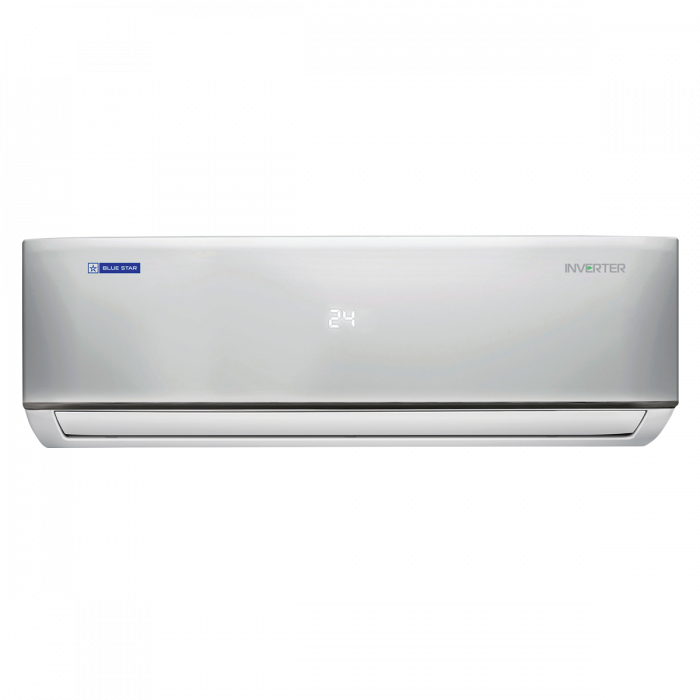

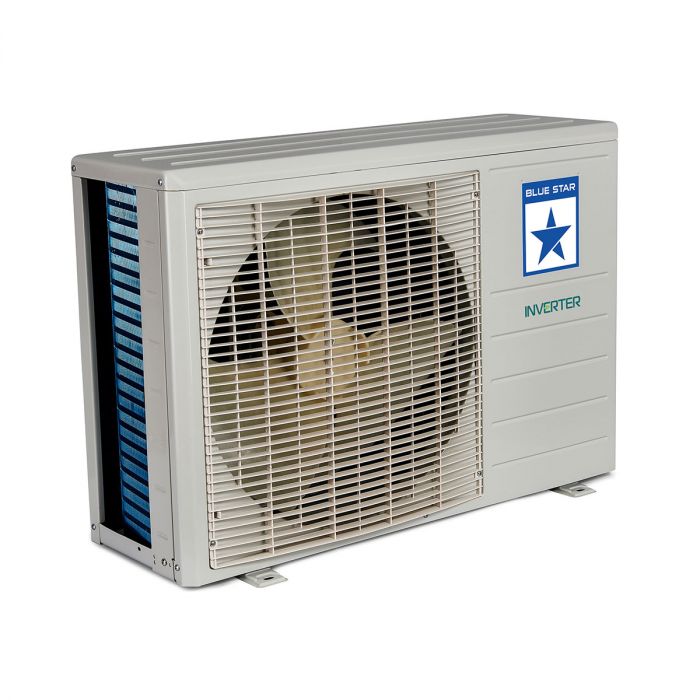

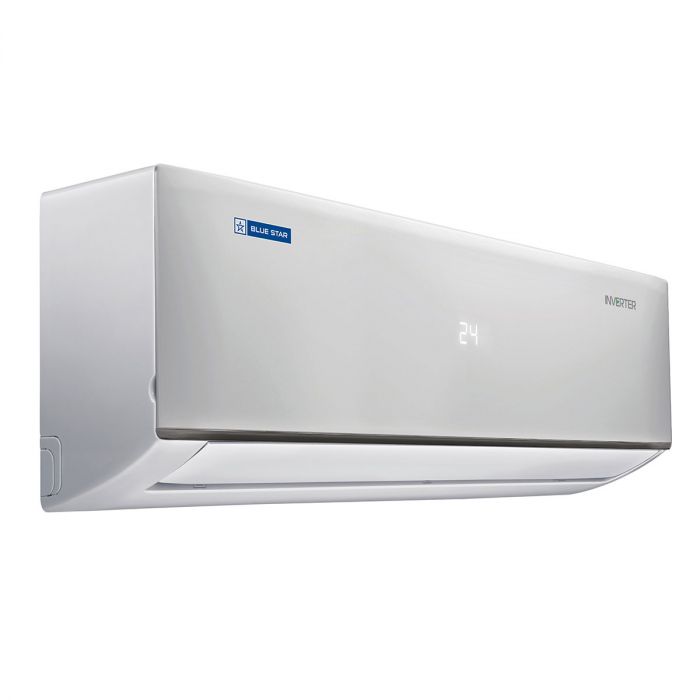

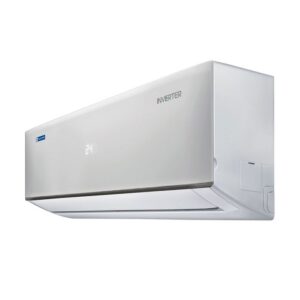

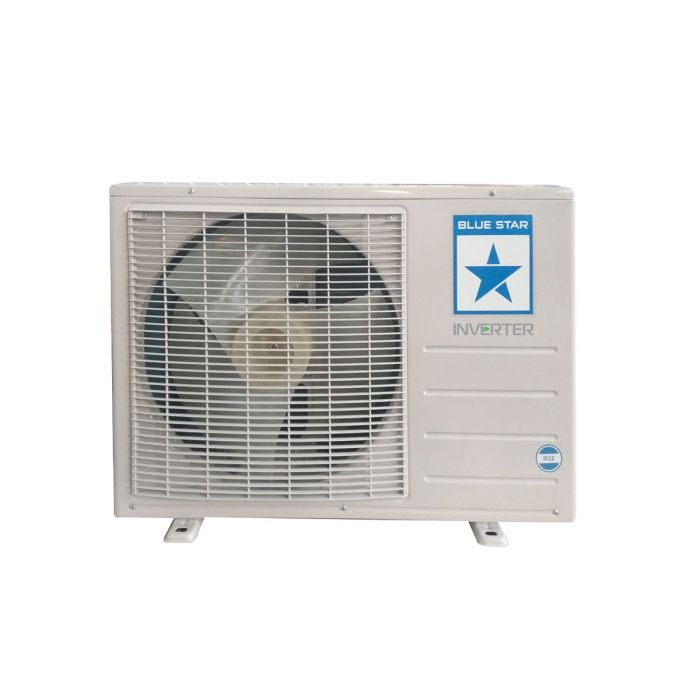

| Product Title | IC512DNUR- Inverter Split AC 1.0 Tr 5 Star |
| Features Refrigerant | R32 |
| Features Condenser Type | 100% Copper |
| Air Conditioner Technology | Inverter |
| Country of Origin
|
India
|
Warranty
| Features Warranty | Life-time Warranty on Inverter Compressor |
| Features Additional Warranty Option | 1+4 Year Extended Warranty |
